PCBA board factory international advanced technology equipment

General craft equipment?

1. The craft equipment does not meet the high quality production requirements of the product, which will result in unqualified product quality.

2.Advanced craft equipment can produce high quality products

FASTPCBA's process technology equipment?

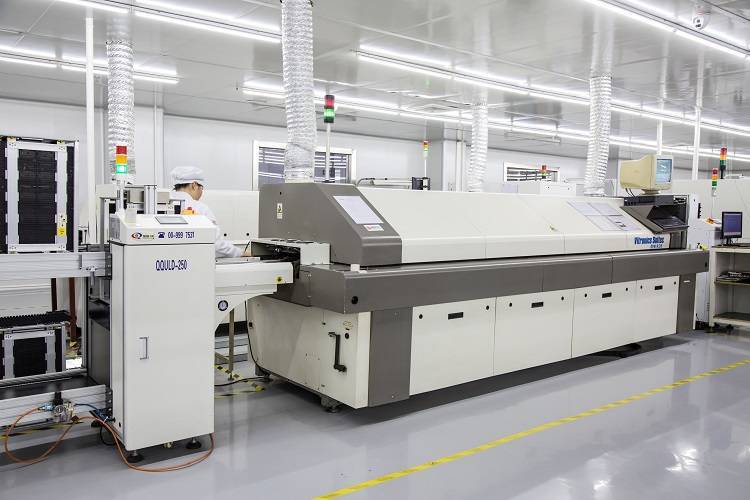

1. Reflow soldering US Flextronics

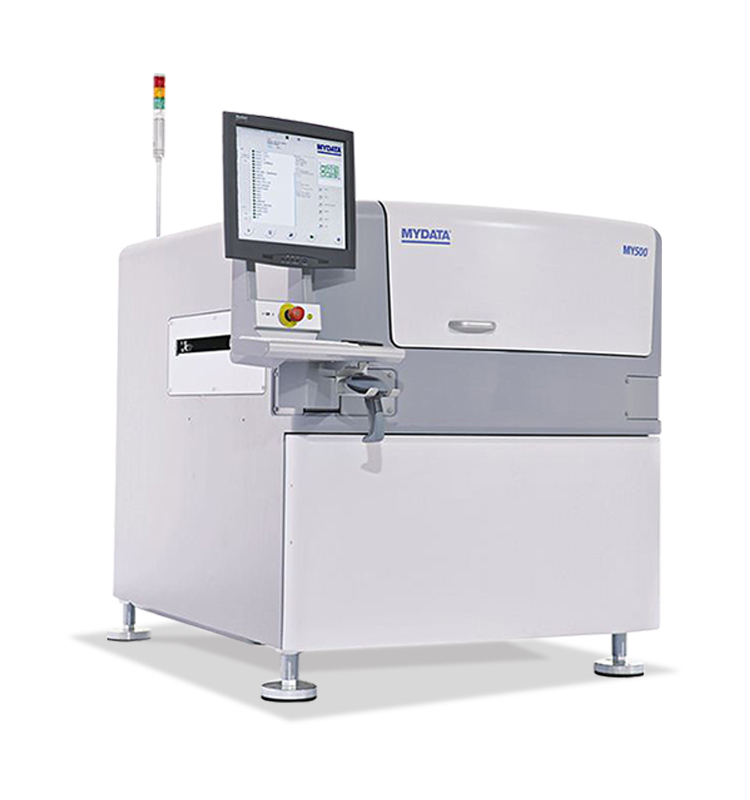

2. International cutting-edge artisan equipment: Sweden imported MY500 solder paste printing machine, can achieve fast transfer, free of steel mesh solder paste printing express delivery in 4 hours. (2 million imported from Sweden, computer-controlled, highly efficient, flexible to solve various incurable problems)

High precision: in the case of 4G acceleration operation, the printed solder paste can be completely matched with the welding pad.

Personalized customization: solder paste thickness can be manually programmed, can be thicker if you want thicker,also can be thinner if you want thin.

4.Solder paste automatic printing machine

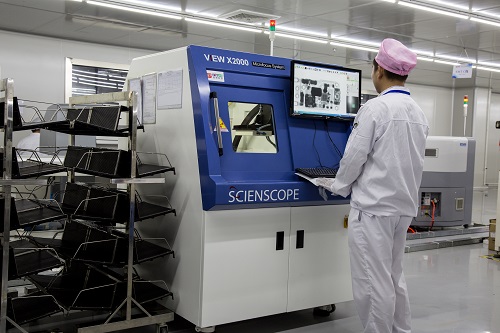

5. X-RAY light, testing the welding joint that can not be detected by the naked eye

FASTPCBA has purchased advanced production test equipment from the United States, Japan, Germany, Israel and other places to enhance production testing and technical capabilities. Through cooperation with customers in developed countries such as Japan and Germany, we have adopted internationally advanced technology and advanced management methods to continuously improve the craft level from the strict requirements of their high standards.

At present, PCB manufacturing has direct laser imaging, high frequency board manufacturing, characteristic impedance control, blind buried hole manufacturing, aluminum substrate and flying probe testing technology, all of which are leading in the industry.

1. invention publication CN107067270A craft quality tracking method for PCB manufacturing process

2.Utility model CN206183276U Respiratory sensing belt for measuring capacitance

3.Utility Model CN206183262U Integrated ECG Measuring Tape

4.Utility model CN206057107U vertical impact test device for board

5.Utility model CN206059368U stacked BGA package structure

6.Utility model CN206057106U oscillating impact experimental device for PCB board

7.Utility model CN206061393U Diamond substrate cooling device for chemical vapor deposition craft for electronic packaging
