PCB Manufacturing & Assembly for the Medical Device Industry

PCB electronic products have made tremendous contributions to the medical industry as diagnostic, monitoring and therapeutic equipment. The medical applications of these electronic devices continue to evolve with the development of electronic technology and become more efficient and dense, resulting in unlimited new possibilities. The core of these medical devices is the PCB. PCBs in the medical industry are highly specialized to adapt to the unique constraints of medical devices. In many medical applications, a small package is needed to meet the size requirements of implants or emergency room monitors. Therefore, medical PCBs are often special high-density interconnect PCBs, also known as HDI PCBs. Medical PCBs can also be made from flexible substrates, allowing the PCB to bend during use, which is essential for both internal and external medical equipment

Due to the health effects associated with it, medical PCB standards are higher than most other PCB types. Repeatability and reliability are the two basic elements that medical PCB suppliers must achieve, in addition to complying with strict medical regulations.

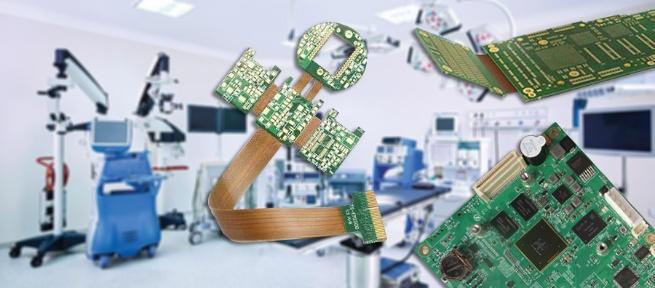

Medical PCB

The development of medical PCB applications is as fast as the medical device industry itself. Some of the most common medical PCB applications include

Monitors: Personal and medical monitors contain PCBs, including blood glucose monitors, heart rate and blood pressure monitors, etc.

Scanning technology: CT scanners and ultrasonic technology usually use PCB-based electronic equipment.

Control system: The equipment that controls fluid infusion, flow and distribution is electronically controlled.

Internal equipment: pacemakers and similar internal medical equipment maintain the health of patients through tiny PCBs in the center.

Scientific Instruments: Medical research uses many scientific instruments to study diseases and test the results of patients. These include electron microscopes for generators and compressors, photometers and control systems, etc.

Medical PCB Application

medical ultrasound system PCB circuit board assembly

Medical ultrasound system PCB circuit board assembly

Blood analyzer circuit board assembly

Endoscope imaging system PCB board assembly

Arteriosclerosis tester PCB circuit board assembly

NMR equipment circuit board assembly

CT scanner circuit board

Rigid-flex PCBs for medical wearables

Medical equipment Rigid-flex PCBs

medical wearables PCB flexible board

Medical wearables PCB flexible board

ventilator circuit board assembly

Ventilator circuit board assembly

ISO13485 is also called "medical device quality management system for regulatory requirements".

Scope of quality management system certification: Production of PCB components for electrocardiograph and endoscope.Through IS013485: 2016 certification, it not only proves that under the quality assurance system, FASTPCBA can continuously provide high-quality products that meet the needs of medical device customers, and further demonstrates our company's higher requirements for product quality standards. The successful passing of this IS013485: 2016 certification is an endorsement of FASTPCBA product quality and safety regulations aspects.

ISO 13485

(ISO 9001 and ISO 13485 certifications)

FASTPCBA will continue to maintain the refined management mode, further improve the management mechanism, and strive to create better quality, higher-end products. At the same time, make the company continue to develop in a better direction.

We have a global sales team available to assist you with PCB Manufacturing & PCB Assembly services,Send your PCB files to get better price now !

Turn your medical project to pcba, contact us
