Flexible pcb manufacturing

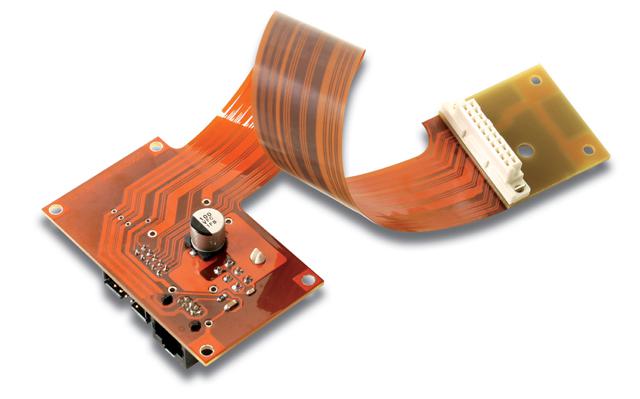

FPC is also called flexible pcb. The PCBA assembly welding process of flexible pcb is very different from the assembly of rigid circuit board. Since the hardness of FPC board is not enough, it is soft. If you don't use special carrier board, you can't fix and transmit. Basic SMT processes such as printing, SMT, and furnace cannot be completed.

Pretreatment of flexible pcb

The FPC board is soft, and it is generally not vacuum packed at the pcb factory. It is liable to absorb the moisture in the air during transportation and storage. It needs to be pre-baked before the SMT production process, and the water is slowly discharged. Otherwise, under the high temperature impact of reflow soldering, the moisture absorbed by the FPC rapidly vaporizes into water vapor to highlight the FPC, which is liable to cause defects such as delamination and foaming of the FPC.

1.FPC's entire manufacturing assembly process introduction

The pre-baking conditions are generally for 4-8 hours at a temperature of 80-100 ° C. In special cases, the temperature can be raised to above 125 ° C, but the baking time should be shortened accordingly. Before baking, be sure to test the sample firstly to determine if the FPC can withstand the setting baking temperature. Consulting appropriate baking conditions from the FPC manufacturer. , the FPC stacking should not be too much when baking. 10-20PNL is suitable. Some flexible pcb manufacturers will put a piece of paper between each PNL for isolation. It is necessary to confirm whether the paper for isolation can withstand the setting baking temperature, if it is not necessary to remove the separator, then bake. The flexible pcb after baking should have no obvious discoloration, deformation, lifting and other defects, and it is necessary to pass the IPQC sampling test before the going on line.

2.Special carrier plate fabrication

According to the CAD file of the circuit board, read the hole positioning data of the FPC to manufacture a high-precision FPC positioning stencil and a special carrier plate, so that the diameter of the positioning pin on the positioning template and the positioning hole on the carrier plate and the aperture of the positioning hole on the FPC are match. Many FPCs are not the same thickness because they need to protect some circuit or design due to some places are thick and some are thin, and some have strengthened metal plates. Therefore, the combination area of carrier and FPC needs to carry out machining, grinding and digging. The actual situation is processed and polished to ensure that the flexible pcb is flat during printing and placement. The material of the carrier board is required to be light and thin, high in strength, low in heat absorption, fast in heat dissipation, and small in warpage after repeated thermal shock. Commonly used carrier materials are synthetic stone, aluminum plate, silica gel plate, special high temperature resistant magnetized steel plate and so on.
