For China pcb manufacturer, PCBA splitter features and usage

For China pcb manufacturer, PCBA board splitter is to separate the PCBA panels, which is the necessary equipment in the PCBA processing plant.

First, China pcb manufacturers’ PCBA splitter features

1. Stabilize the operating mechanism to prevent improper electrical force from causing damage to the PCB tin surface, solder joints of electronic parts, and other electrical circuits due to the folding board process.

2. Special round knife material design ensures the smoothness of the PCB split surface.

3.Cutting stroke distance using touch-type five-segment adjustment, can quickly switch between different PCBs

4. Install high-frequency eye protection lighting device to improve the operation quality of operators.

5. Strengthen safety devices to avoid hurt by human negligence.

6. Simple cutting distance adjustment: It is easy to operate and adjust the contact size of the contact button.

7. Cutter wheel pressure adjustment: Use eccentric cam 0-2mm upper and lower cutter wheel clearance adjustment.

8. Double-panel support design, so that the double-panel can be cut more firmly.

9. The back panel design of the PCB board and the upper and lower knives is vertical, effectively increasing:

A. Stability during cutting B. PCB edge flatness C. Tool wheel life.

10. Upper and lower guard plate, machine safety light eye and emergency stop switch safety mechanism design,

Second, China pcb manufacturers’ usage of PCBA splitter

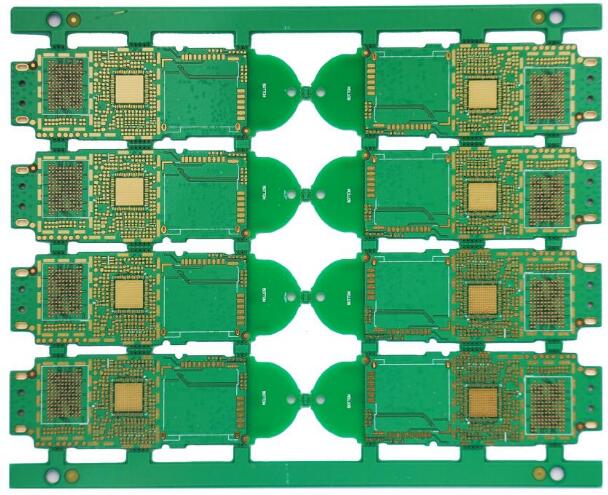

China pcb manufacturers’ PCBA splitter is mainly used to separate the PCBA panels in the PCBA factory. Generally, after the PCBA soldering is completed, the boards are divided and then tested. Generally, in the SMT processing factory, the board will not be separated, but the panel will be shipped directly to the customer.

In some small and medium-sized China pcb manufacturer, manual splitting is adopted, but it is easy to damage the PCBA board. It is safer to use the machine for splitting panels.
