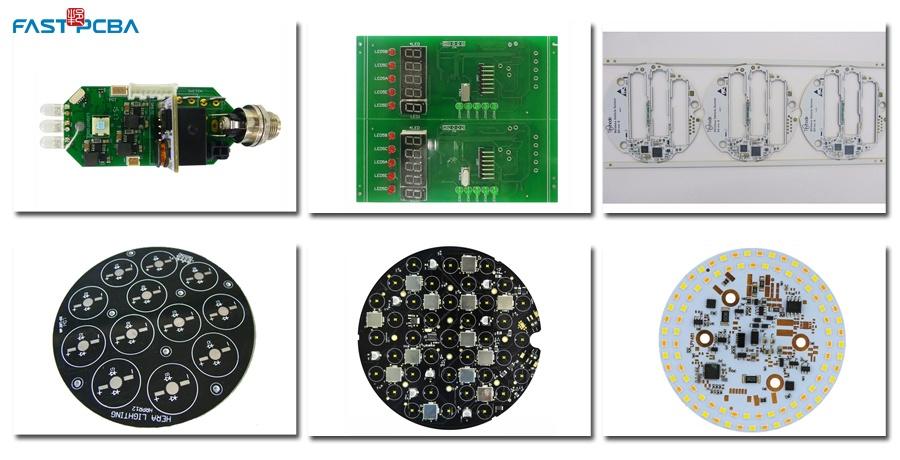

Aluminum PCB is a circuit board called PCB circuit board production.
Aluminum PCB is a unique metal-based copper clad laminate, PCB aluminum substrate has good thermal conductivity, electrical insulation properties and mechanical processing properties.

Features of Aluminum PCB
1. Aluminum PCB surface mount technology (SMT); Aluminum PCB has good heat dissipation performance in the circuit design scheme;
2. Aluminum PCB can reduce the temperature, improve the power density and reliability of the product, and extend the service life of the product;
3. Aluminum PCB can reduce the volume and reduce the cost of hardware and assembly;
4. Aluminum PCB can replace ceramic substrates to obtain better mechanical endurance.

Structure of Aluminum PCB

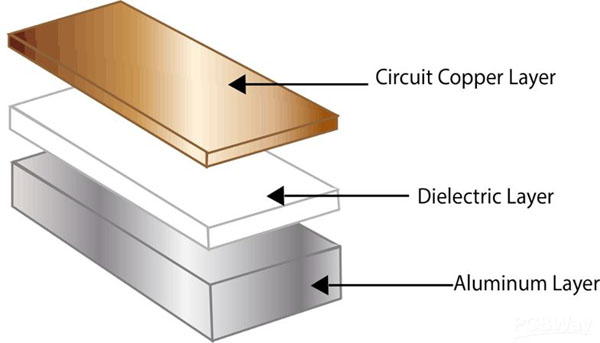

Aluminum PCB copper clad laminate is a metal circuit board material, composed of copper foil, thermally conductive insulating layer and metal substrate. Its structure is divided into three layers:
Circuit layer: equivalent to the copper clad laminate of ordinary PCB, the thickness of the circuit copper foil is 1oz to 10oz.
Insulation layer: The insulation layer is a layer of low thermal resistance thermally conductive insulating material. Thickness: 0.003" to 0.006" inches is the core technology of aluminum-based copper clad laminates, which has obtained UL certification.
Base layer: It is a metal substrate, generally aluminum or optional copper. Aluminum-based copper clad laminate and traditional epoxy glass cloth laminate, etc.

Aluminum PCB is composed of a circuit layer, a thermally conductive insulating layer and a metal base layer; the circuit layer (ie, copper foil) is usually etched to form a printed circuit to connect the various components of the assembly. In general, the circuit layer requires a large current-carrying capacity Therefore, thicker copper foil should be used, the thickness is generally 35μm~280μm;

The thermal insulation layer is the core technology of Aluminum PCB. It is generally composed of a special polymer filled with special ceramics. It has low thermal resistance, excellent viscoelasticity, thermal aging resistance, and can withstand mechanical and thermal stress. IMS-H01, IMS-H02 and LED-0601 and other high-performance Aluminum PCB thermal insulation layers are using this technology, making it have extremely good thermal conductivity and high-strength electrical insulation performance;

The metal base layer is the supporting member of the aluminum substrate and requires high thermal conductivity. Generally, it is aluminum plate, but copper plate can also be used (copper plate can provide better thermal conductivity), which is suitable for conventional machining such as drilling, punching and cutting. Compared with other materials, PCB materials have incomparable advantages. Suitable for surface mount SMT public art of power components. No radiator is needed, the volume is greatly reduced, the heat dissipation effect is excellent, and the insulation performance and mechanical performance are good.

Uses of Aluminum PCB
1. Audio equipment: input, output amplifier, balanced amplifier, audio amplifier, pre-amplifier, power amplifier, etc.
2. Power supply equipment: switching regulator, DC/AC converter, SW regulator, etc.
3. Communication electronic equipment: high-frequency amplifier `filtering appliance` transmission circuit.
4. Office automation equipment: motor drives, etc.
5. Automobile: electronic regulator `igniter` power controller, etc.
6. Computer: CPU board, floppy disk drive, power supply, etc.
7. Power module: converter `solid relay` rectifier bridge, etc.
