EMS pcb manufacturing mother board circuit board assembly
FASTPCBA Technology Co., Ltd is a professional PCB manufacturer in China, Shenzhen. With 14 years of development, FASPCBA turns into a first class manufacturer of HDI PCB and automotive PCB assembly, with production capability 35,000 square meters. FASTPCBA is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.
Email：pcba13@fastpcba.cn
EMS pcb manufacturing mother board circuit board assembly
Products parameter:
| Article | Description | Capability | |
| Sercive | PCB and SMT assembly with one-stop service | ||
| Material | Laminate materials | FR4, high TG FR4, high frequency, alum, FPC | |
| Board cutting | Number of layers | 1-48 | |
|
Min.thickness for inner layers （Cu thickness are excluded） |
0.003”（0.07mm） | ||
| Board thickness | Standard | （0.1-4mm±10%） | |
| Min. | Single/Double：0.008±0.004” | ||
| 4layer：0.01±0.008” | |||
| 8layer：0.01±0.008” | |||
| Bow and twist | ﹤7/1000 | ||
| Copper weight | Outer Cu weight | 0.5-4 0z | |
| Inner Cu weight | 0.5-3 0z | ||
| Drilling | Min size | 0.0078”（0.2mm） | |
| Drill deviation | ±0.002″（0.05mm） | ||
| PTH hole tolerance | ±0.002″（0.005mm） | ||
| NPTH hole tolerance | ±0.002″（0.005mm） | ||
|
Solder mask
|
Color | Green,white,black,red,blue… | |
| Min solder mask clearanace | 0.003″（0.07mm） | ||
| Thickness | （0.012*0.017mm） | ||
| Silkscreen | Color | white,black,yellow,blue… | |
| Min size | 0.006″（0.15mm） | ||
| E-test | Function Test | 100% Functional test | |
| PCBA Testing | X-ray,AOI Test,Functional test | ||
| Pcb assembly | one-stop service electronic manufacxturer service | ||
| Component sourcing | Yes | ||
| Certificate | IATF16949,ISO9001 | ||
| Delivery time: | PCB | 3-12days | |
| PCBA | 8-20days | ||
| Tolerance of pcb | ±5% | ||
| Max size of finish board | 450*450mm | ||
| MOQ | NO MOQ (1pcs) | ||
| Surface Finish | HASL,ENIG,immersion silver,immersion tin,OSP… | ||
| PCB outline | Square,circle,irregular(with jigs) | ||
| package | QFN,BGA,SSOP,PLCC,LGA | ||
| Sub-assembly | Plastic,metal,screen | ||
FAQ
Q1:What service do you have?
FASTPCBA: We provide turnkey solution including Fr4 pcb fabrication, SMT, plastic injection & metal, final assembly,testing and other value-added service.
Q2:What are the main products of your pcb production?

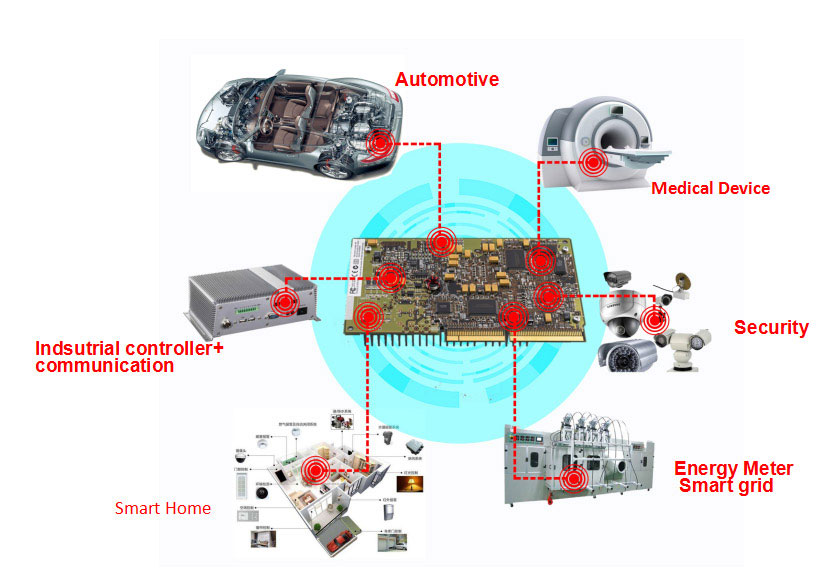

FASTPCBA: Our Fr4 pcb services are mainly for the industries including Medical,Automotive,Communication.
Q3:Is FASTPCBA a factory or trade company?
FASTPCBA: FASTPCBA is a factory with electronic circuit board factory located in China
