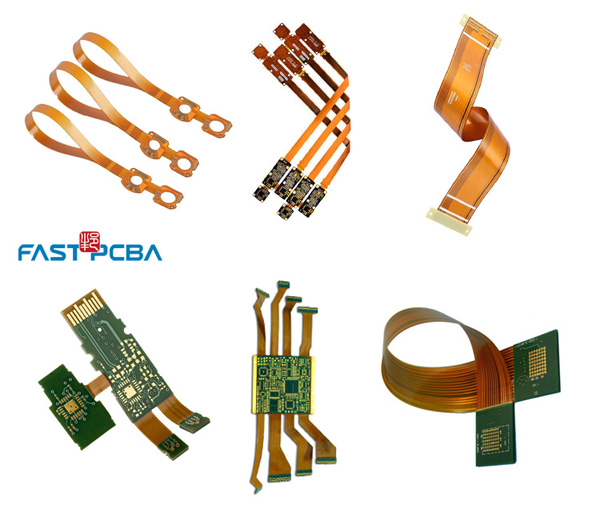

FPC Flex Circuit Board Custom Flexible PCB Manufacturer

With 20+ years of OEM printed circuit board(PCB) and PCB assembly manufacturing experience along with excellent quality, advanced services and competitive prices, FASTPCBA has won numerous customers' trust and support.

Email：pcba13@fastpcba.cn

FPC Flex Circuit Board Custom Flexible PCB Manufacturer

With 20+ years of OEM printed circuit board(PCB) and PCB assembly manufacturing experience along with excellent quality, advanced services and competitive prices, FASTPCBA has won numerous customers' trust and support.

FPC Technology and Capabilities

Material	FR4,Polyimide / Polyester
Counts	Flex: 1~8L; Rigid-Flex: 2~8L
Board Thickness	Min.0.05mm ; Max. 0.3mm
Copper Thickness	1/3 oz --- 2 oz
CNC Drill Size (Max)	6.5mm
CNC Drill Size (Min)	Flex: 0.15mm
Holes Location Tolerance	±0.05mm
Coverlay Drill Size (Min)	0.6mm
Hole to Coverlay Opening Windows (Min)	0.15mm
Min Line Width / Spacing	0.1/0.1mm
Copper Thickness on Hole Wall	Flex:12-22μm
Min Pad Size	φ0.2mm
Etch Tolerance	Finished line width tolerance ±20%
Pattern Registration Tolerance	±0.1mm (Working Panel Size: 250*300mm)
Coverlay Registration Tolerance	±0.15mm
Solder Mask Registration Tolerance	±0.2mm
Solder Mask to PAD	Non photosensitive: 0.2mm
Solder Mask to PAD	Photosensitive: 0.1mm
Min. Solder Mask Dam	0.1mm
Misregistration Tolerance	±0.30mm
for Stiffener, Adhesive, Glue paper	±0.30mm
Surface Finish	Plating Ni / Au ; Chemical Ni / Au ; OSP
