PCBA Electronics Assembly Manufacturer Circuit Board Assembly

FASTPCBA is a professional PCB & PCBA manufacturer in Shenzhen China.Our provide high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.

Email：pcba13@fastpcba.cn

PCBA Electronics Assembly Manufacturer PCB Circuit Board Assembly

Our Service Type

FASTPCBA provides superior service for automotive electronics, medical electronics, telecommunications, industrial control, smart home and other industries around the world.

Bare PCB Manufacturing

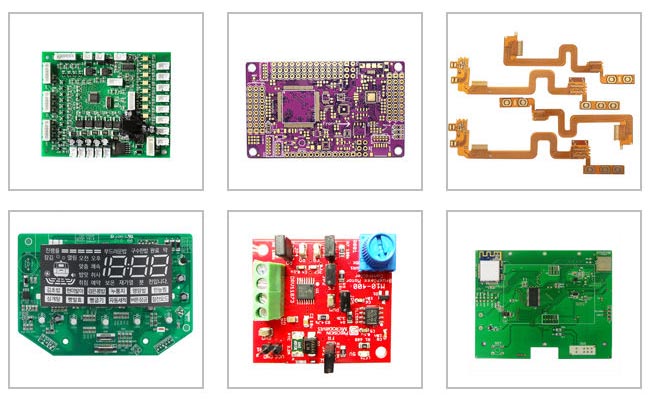

Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB.

Circuit Board Assembly Service

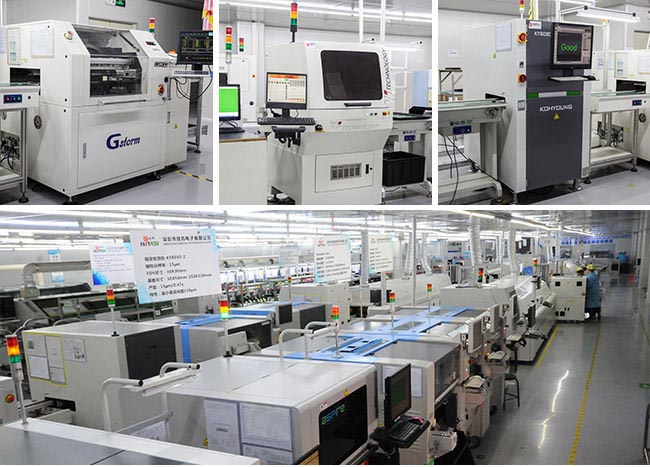

FASTPCBA Electronics Co., Ltd., owns leading quality control inspection equipment and high-standard anti-static as well as dust-free workshop production environment in electron industry.

By virtue of 0.1mm laser drilling, 100% AOI detection between layers, tightly controlled multi-layer compression equipment, super-speed flying-probe tester, and the quality of PCB is guaranteed powerfully from hardware and details.

Industrial control equipment devices main board with big components can be easily accomplished on plug-in production line. Industrial control and welding of a small number of large components including equipment products can be accomplished on plug-in production line.

The QA report before shipment and strict control for each production process ensure high-quality and stability of each product. Without any secrets, we just concentrate on every detail.

FASTPCBA

PCBA Electronics Assembly Capability

Article	Description	Capability
Laminate Materials	FR4, high TG FR4, high frequency, alum, FPC
Board Cutting	Number of layers	1-48
Board Cutting	Min.thickness for inner layers (Cu thickness are excluded)	0.003”(0.07mm)
Board Thickness	Standard	(0.1-4mm±10%)
	Min.	Single/Double:0.008±0.004”
		4layer:0.01±0.008”
		8layer:0.01±0.008”
	Bow and twist	no more than 7/1000
Copper Weight	Outer Cu weight	0.5-4 0z
Copper Weight	Inner Cu weight	0.5-3 0z
Drilling	Min size	0.0078”(0.2mm)
	Drill deviation	±0.002″(0.05mm)
	PTH hole tolerance	±0.002″(0.005mm)
	NPTH hole tolerance	±0.002″(0.005mm)
Solder Mask	Color	Green,white,black,red,blue…
	Min solder mask clearanace	0.003″(0.07mm)
	Thickness	(0.012*0.017mm)
Silkscreen	Color	white,black,yellow,blue…
Silkscreen	Min size	0.006″(0.15mm)
Component Sourcing	Yes
Tolerance of PCB	±5%
Max Size of Finish Board	700*460mm
MOQ	NO MOQ (1pcs)
Surface Finish	HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline	Square,circle,irregular(with jigs)
Package	QFN,BGA,SSOP,PLCC,LGA
Sub-assembly	Plastic,metal,screen
Min Line/Space	0.075/0.075mm

FAQ:

Q: What service do you have?

A: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.

Q: What is your minimum order quantity (MOQ)?

A:As for MOQ, we have no request about it. Even 1 pcs is ok for us.

Q: What is needed for PCB & PCBA quotation?

A: For PCB: Quantity, Gerber file and technic requirements (material,size, surface finish treatment, copper thickness,board thickness).

For PCBA: PCB information, BOM,Testing documents.

Q: How to keep our product information and design file secret ?

A: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.

Q: What are the main products of your PCB/PCBA services?

A: Automotive, Medical, Industry Control,IOT,Smart Home,Military.

Q: Are you factory?

A: Our factory is located in 1st Building, No. 18-1, Yuquan East Road, Yulv Village, Gongming Street, Guangming New District shenzhen, china. (Contact us for factory VR panorama. )
