Pcb Manufactur Circuit Board Electronic Pcb Assembly

As a buyer or pcb engineer, your challenge is to find high quality, competitively priced printed circuit boards and interconnect solutions for your end product. With over 20 years of experience in PCB technology, optimization, and manufacturability, FASTPCBA’ dedicated team of PCB professionals will provide you with the most innovative and cost-effective solutions for your One-Stop Solution: PCB Manufacturing + Components Sourcing + PCB Assembly + Testing.

One-Stop PCB & PCBA Solutions:

As a buyer or pcb engineer, your challenge is to find high quality, competitively priced printed circuit boards and interconnect solutions for your end product. With over 20 years of experience in PCB technology, optimization, and manufacturability, FASTPCBA’ dedicated team of PCB professionals will provide you with the most innovative and cost-effective solutions for your One-Stop Solution: PCB Manufacturing + Components Sourcing + PCB Assembly + Testing.

Our experienced team of PCB professionals works closely with state-of-the-art manufacturing partners to offer the most competitive prices in the market while ensuring that all boards are built to global quality standards. With extensive knowledge of industry requirements and specifications, the FASTPCBA team will also assist with engineering specifications to improve feasibility and manufacturability and help identify cost reduction opportunities.

From the moment you contact us about a new or existing project up to the time we deliver, our focus will remain on providing the best quality and service. Our team of experienced sales staff, account managers, planners/schedulers and technical support engineers are always ready to ensure that all of your needs are met and keep you ahead of your competition.


One-stop PCB PCBA Manufacturer


One-Stop PCB & PCBA Capabilities:

Offering: Rigid PCB; Flexible PCB; Rigid-flex PCB; HDI PCB; Gold-Plated PCB; High Frequency PCBs; Aluminum PCB; Copper Base Circuit Board; High TG PCB; Heavy Copper PCB......


Article

Description

Capability

Laminate Materials

FR4, high TG FR4, high frequency, alum, FPC

Board Cutting

Number of layers

1-48

Min.thickness for inner layers
(Cu thickness are excluded)

0.003”(0.07mm)

Board Thickness

Standard

(0.1-4mm±10%)

Min.

Single/Double:0.008±0.004”

4layer:0.01±0.008”

8layer:0.01±0.008”

Bow and twist

no more than 7/1000

Copper Weight

Outer Cu weight

0.5-4 0z

Inner Cu weight

0.5-3 0z

Drilling

Min size

0.0078”(0.2mm)

Drill deviation

±0.002″(0.05mm)

PTH hole tolerance

±0.002″(0.005mm)

NPTH hole tolerance

±0.002″(0.005mm)

Solder Mask

Color

Green,white,black,red,blue…

Min solder mask clearanace

0.003″(0.07mm)

Thickness

(0.012*0.017mm)

Silkscreen

Color

white,black,yellow,blue…

Min size

0.006″(0.15mm)

Component Sourcing

Yes

Tolerance of PCB

±5%

Max Size of Finish Board

700*460mm

MOQ

NO MOQ (1pcs)

Surface Finish

HASL,ENIG,immersion silver,immersion tin,OSP…

PCB Outline

Square,circle,irregular(with jigs)

Package

QFN,BGA,SSOP,PLCC,LGA

Sub-assembly

Plastic,metal,screen

Min Line/Space

0.075/0.075mm

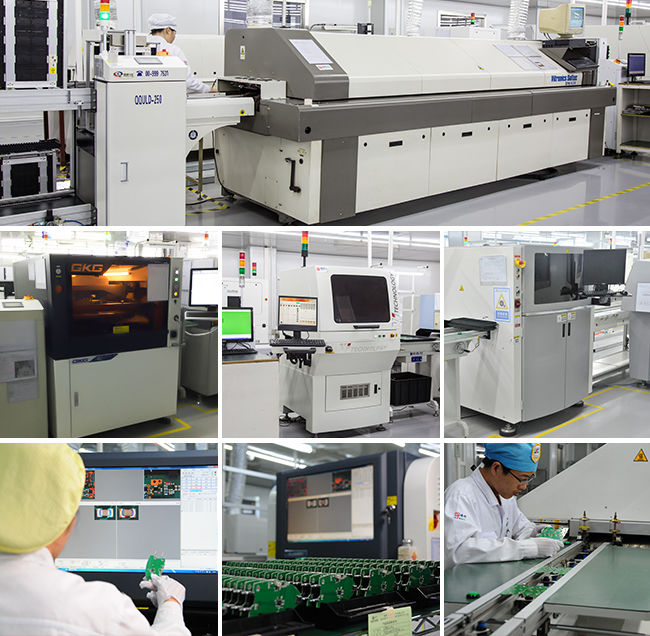

pcba services


Customer Witness

FASTPCBA leave customers good memories during each successful cooperation

We survive based on higher quality standards

Win your respect with credibility

Achieve higher value at the same price

Revernce heart
