PCB Manufacturing Factory FR4 PCB, MCPCB, FPC

PCB Fabrication is one of our core services FASTPCBA. From multi-layered to flexible printed circuit boards, FASTPCBA is your one-stop shop. We provide our customers with PCB solutions and services worldwide. especially more than 80% printed circuit board are exported to oversea market. We have full of confidence to meet your quality level.

Email：pcba13@fastpcba.cn

As a 20 years PCB manufacturer in China, FASTPCBA is providing the latest printed circuit board technologies and highest quality standards for electronics industry. You can trust us to meet your demands, from small volume to mass production whatever the simplest PCB boards or the most complex.

Check out this list of some of the high-quality PCB Fabrication and PCB Assembly services we offer:

Printed Circuit Board PCB Fabrication:

Accept Stardard: IPC III, Military, Automotive, Medcial, We offer you expanded PCB capabilities:

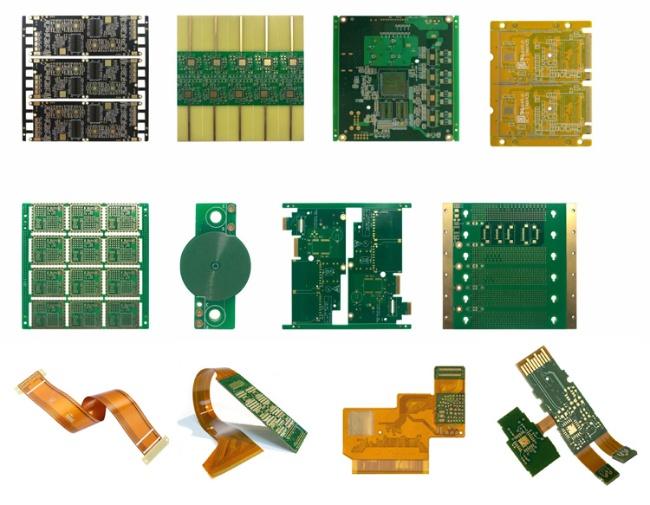

* Rigid PCB

* Flexible

* Rigid-flex

* HDI board

* Gold-Plated PCB

* High Frequency PCBs

Specification of PCB Manufacturing:

Product Name	Printed Circuit Board PCB Fabrication
Materials	FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum/F4B-2
Number of Layer	1-48 layers (include Rigid-Flex PCB)
Board Thickness	Rigid 0.15mm-3.00mm
Board Thickness Tolerance	5-10%
Profile Processing	CNC Milling/V-Cut/Mold Flushes
Copper Weight Tolerance	±0.15 oz
Copper Thickness	0.5oz-5oz
Min Line Width	0.1mm
Min Space Width	0.127mm
Min Drill Hole Diameter	0.1mm
Max Processing Sheer	700mm*460mm
Silk Screen Min Line Width	0.15mm
Anti-welds resin	Thermosetting resin/Without the gloss resin/Photosensitive resin
Soldermask	green,red,blue,white,black,yellow,etc.
Flame resistance	94v0
Certification	ISO 9001:2000,ISO 14001,ISO/TS16949:2002,UL E203640
Approval Standard	IPC-600F
Suface Finish	HASL/Nickle/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG/Rosin etc
